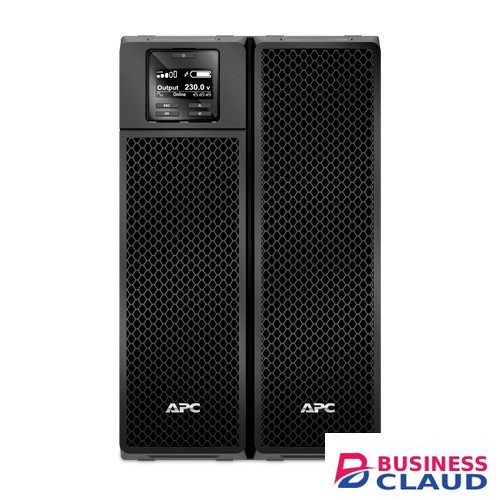

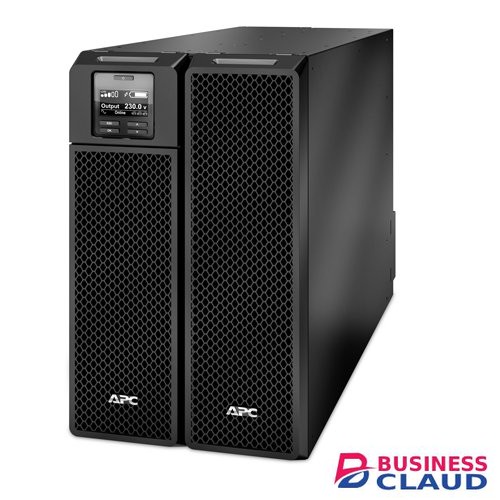

APC Smart-UPS SRT 10000VA 230V UPS

Key Features High density, double-conversion on-line power protection with scalable runtime 10/100 BaseT Connection Green mode Battery failure notification LCD graphics display Technical Specifications Output power capacity: 10.0 KWatts / 10.0 kVA Max Confidurable Power: 10.0 KWatts / 10.0 kVA Nominal Output voltage: 230V Output Voltage Distortion: Less than 2% Output Frequency (sync to mains): 50/60Hz +/- 3 Hz Other Output Voltages: 220, 240 Load Crest Factor: 3 : 1 Topology: Double Conversion Online Waveform Type: Sine Wave Output Connections: (6) IEC 320 C13 (Battery Backup), (4) IEC 320 C19 (Battery Backup), (1) Hard Wire 3-wire (H N + G) (Battery Backup), (3) IEC Jumpers (Battery Backup) Bypass: Internal Bypass (Automatic and Manual) Nominal Input Voltage: 230V , 400V 3PH Input Frequency: 40 - 70 Hz (auto sensing) Input Connections: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) Input Voltage range for main operations: 160 - 275V Input voltage adjustable range for mains operation: 100 - 275 (half load), 173 - 476 (half load)V Other Input Voltages: 220, 240, 380, 415 Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time: 1.5hour(s) Nominal Battery Voltage: +/-192 V (split battery referenced to neutral) Expected Battery Life (years): 3 - 5 Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB Audible Alarm: Audible and visible alarms prioritized by severity Emergency Power Off (EPO): Yes Available SmartSlot™ Interface Quantity: 1 Surge energy rating: 480Joules Warranty: 1 Year
