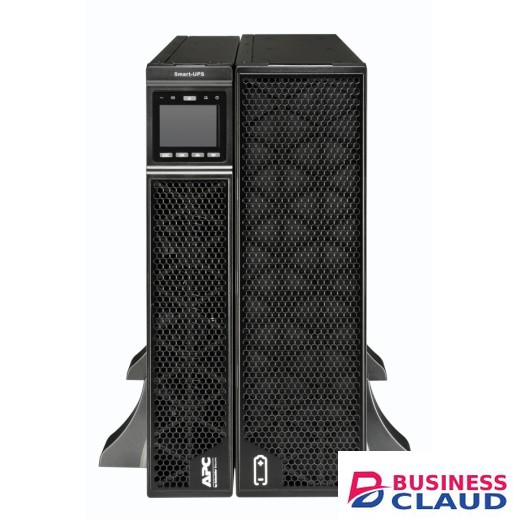

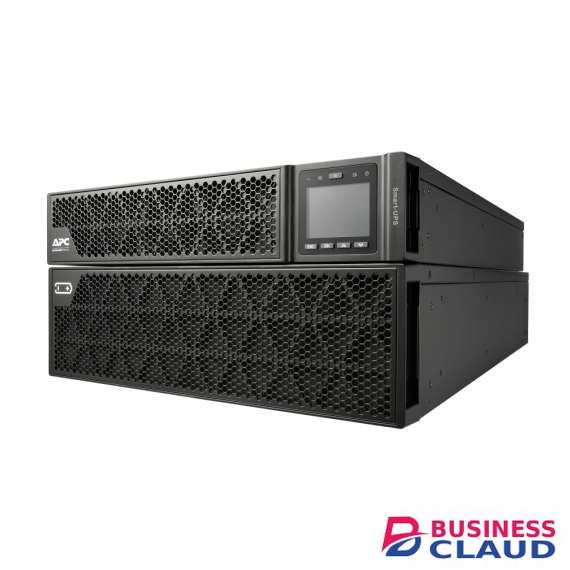

APC SRTG10KXLI 10kVA 230V Smart UPS

General provided equipment Smart UPS signalling RS-232 cable User manual Number of tare power 174.6 W Number of power module free slots 0 Number of power module filled slots 0 redundant No UPS size S Physical depth 62 cm height 21.7 cm mounting preference No preference net weight 81.12 kg mounting mode Rack-mounted with kit two post mountable 0 USB compatible No width 44 cm Input network frequency 40...70 Hz auto-sensing number of input connectors 1 hard wire 3-wire (1P + N + E) input voltage limits 160...285 V Input voltage 220 V 240 V maximum input current 30 A max short time withstand current 40 kA input voltage 230 V Output rated power in W 10000 W Maximum configurable power in W 10000 W harmonic distortion Less than 2 % output frequency 50/60 Hz +/- 3 Hz sync to mains Output voltage 220 V 240 V crest factor 3 : 1 UPS type Double conversion online Wave type Sine wave output connector type Hard wire 3-wire (H N + E) 1 nb of power socket outlets 2 IEC 60320 C13 1 IEC 60320 C19 bypass type Internal bypass (automatic and manual) curve equation Efficiency curve fixed loss 0.0130 curve load maximum 100 % curve load minimum 2 % curve proportional loss 0.0242 curve square loss 0.0229 curve X-axis maximum 100 % curve test cond ID Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output. curve X-axis minimum 0 % curve X-axis title Load curve X-axis units Percentage curve Y-axis maximum 100 % curve Y-axis minimum 50 % curve Y-axis title Efficiency curve Y-axis units Percentage full load runtime 00:03:30 10000 W graph display 1 half load runtime 00:11:00 5000 W output voltage 230 V Maximum configurable power in VA 10000 VA rated power in VA 10000 VA Environmental ambient air temperature for operation 0…40 °C relative humidity 0…95 % non-condensing operating altitude 0...6600 ft ambient air temperature for storage -15…45 °C storage Relative Humidity 0…95 % Non-condensing storage altitude 0.00…15240.00 m acoustic level 55 dB heat dissipation 2217.98 Btu/h show note OP temperature No IP degree of protection IP20 Batteries & Runtime battery type Lead-acid battery number of battery filled slots 0 number of battery free slots 0 Battery recharge time 4 h additional information Configurable for 220 : 230 or 240 nominal output voltage liquid value 0 battery voltage +/- 96 V battery curve D battery charger power 431 W rated Battery power in VAH 1772 VAh runtime battery life 3…5 year(s) battery option SRTG192XLBP4 1 3564 VAh SRTG192XLBP4 2 5415 VAh SRTG192XLBP4 3 7378 VAh SRTG192XLBP4 4 9216 VAh extended runtime 1 Communications & Management preinstalled device Network management card control panel LED Status display with on line : on battery Multifunction LCD status and control console alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency power off Yes Surge Protection and Filtering Surge energy rate 600 J Packing Units Package 1 Weight 83.14 kg Package 1 Height 41.4 cm Package 1 width 59 cm Package 1 Length 79 cm
