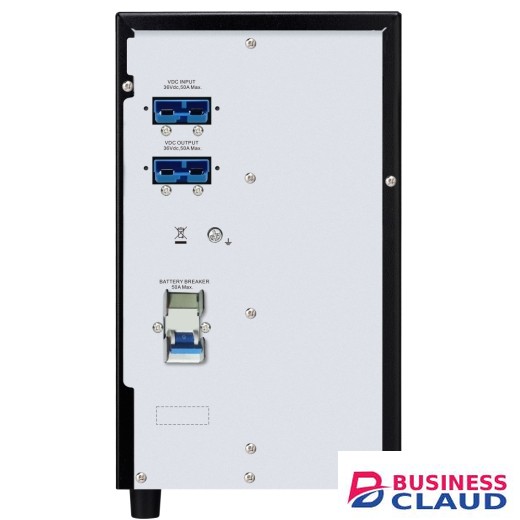

APC SRV3KIL SRV 3000VA 230V Extended Runtime Battery Pack On-Line Easy UPS

Part Number: SRV3KIL Output Max Configurable Power (Watts) 2.4kWatts / 3.0kVA Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Efficiency at Full Load 88.0 % Output Voltage Distortion 3 % Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains Other Output Voltages 220 V, 240 V Load Crest Factor 3 : 1 Topology Double conversion online Waveform type Sine wave Transfer Time 4 ms typical Bypass Internal bypass (automatic and manual) Input Input frequency 40 - 70 Hz Auto sensing Input voltage range for main operations 110 - 285 Half load, 160 - 280 Full loadV Number of Power Cords 1 Efficiency at Full Load 88.0 % Other Input Voltages 220 V, 240 V Batteries & Runtime Battery type Lead-acid battery Typical recharge time 5.5hour(s) Nominal Battery Voltage 72 V Expected Battery Life (years) 3 - 5 Battery Charge Power (Watts) 350 Watts Runtime View Runtime Graph Efficiency View Efficiency Graph Communications & Management Interface Port(s) DB-9 RS-232, USB Control panel Multifunction LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Available SmartSlot™ Interface Quantity 1 Surge Protection and Filtering Surge energy rating 600Joules Physical Maximum Height 336MM, 33.6CM Maximum Width 425MM, 42.5CM Maximum Depth 425MM, 42.5CM Net Weight 45.9KG Shipping weight 49.8KG Shipping Height 465MM, 46.5CM Shipping Width 565MM, 56.5CM Shipping Depth 565MM, 56.5CM Color Black Environmental Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 95 (Non-condensing) % Operating Elevation 0 - 3000meters Storage Temperature -20 - 50 °C Storage Relative Humidity 0 - 95 (Non-condensing) % Storage Elevation 0 - 15000meters Audible noise at 1 meter from surface of unit 50.0dBA Online thermal dissipation 910.0BTU/hr Protection Class IP20
