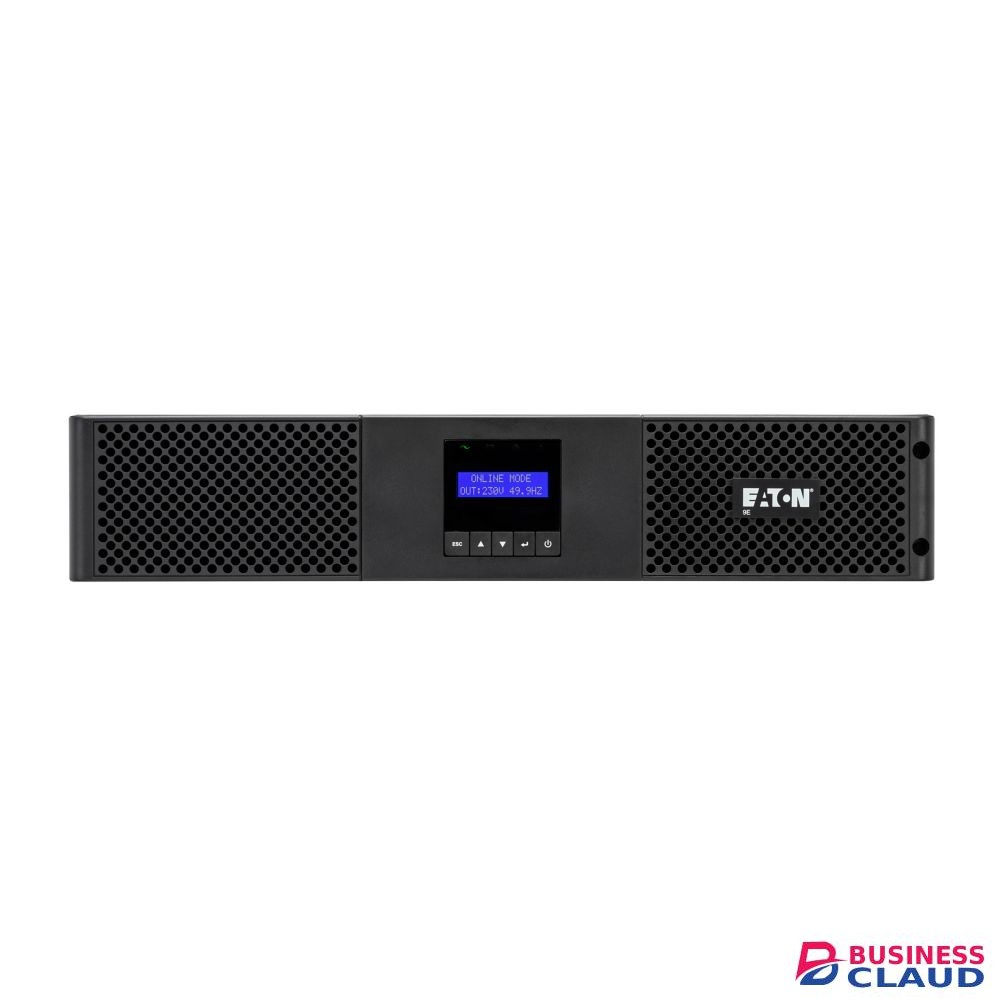

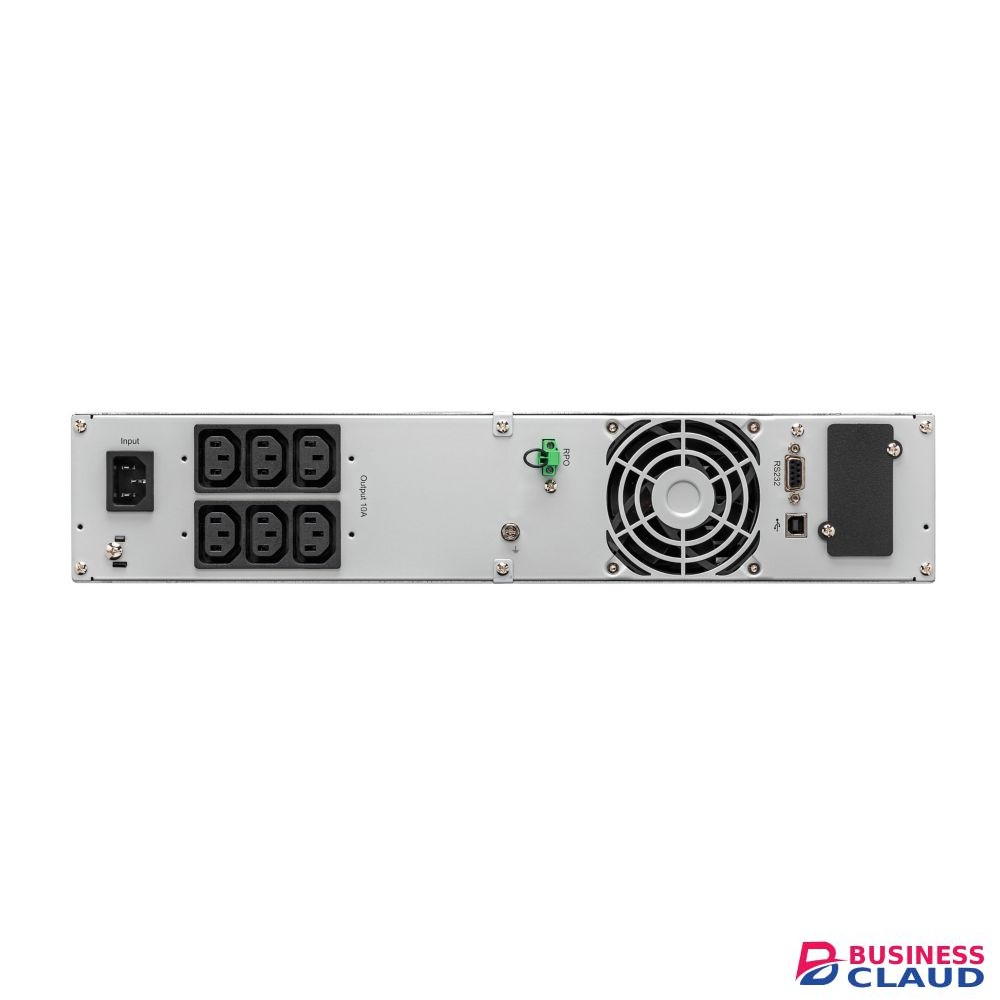

Eaton 9E 2000 VA 1800 W Input C14 Outputs (6) C13 Rack 2U Online UPS
SKU.: BC12791373
✓ In stock
Eaton 9E UPS, 2000 VA, 1800 W, Input: C14, Outputs: (6) C13, Rack, 2U General specifications Product Name Eaton 9E UPS Catalog Number 9E2000IR EAN 3553340710346 Product Length/Depth 608 mm Product Height 86.5 mm Product Width 438 mm Product Weight 29.9 kg Compliances CE Marked TUV Certifications IEC/EN 62040-1 IEC/EN 62040-2 CE Battery Battery type Sealed, lead-acid Runtime graph Battery replacement Replacable batteries Battery quantity 6 Battery management Temperature compensated charging method Automatic battery test Deep discharge protection Battery rating 12 V / 7 Ah Extended battery capability Yes Electrical output Receptacle (6) C13 Voltage 230V Wattage 1800 W Output power factor 0.9 Output voltage range 220/230/240 V +/- 2% Output waveform Sine wave Output nominal voltage 230V default (220/230/240V) Voltage distortion output (linear load) - max 3 Feed type 1 Topology Online/Double-conversion VA rating 2000 VA Electrical input Input connection C14 Input nominal voltage 230V default (220/230/240V) Nominal frequency 50/60 Hz Input power factor >.99 Input frequency range 40-70 Hz Communications Includes network card No Communication USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote power off Ethernet interface No User interface Multilingual LCD display Potential free switch contact Yes Expansion slots One slot for optional communication card Software compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power Protector Type of interface Other Environmental Altitude 3000 m Noise level 45 dB at 1 meter Temperature range 0° to 40°C (32° to 104°F) Relative humidity 0-96% non-condensing Additional specifications Construction type 482.6 mm (19 inch) device Package contents UPS (2) IEC-IEC output cables USB cable Rack-mounting kit (rails and brackets) Safety instructions Quickstart guide Phase (output) 1 Internal bypass Yes Auto shutdown function Yes Color Black Efficiency 91 Rack mounting kit Yes Phase (input) 1 Hot swap power No
You can explore our full range of Electronics.
from 1
USh 4,672,800.00
Incl. 0.16% VAT
