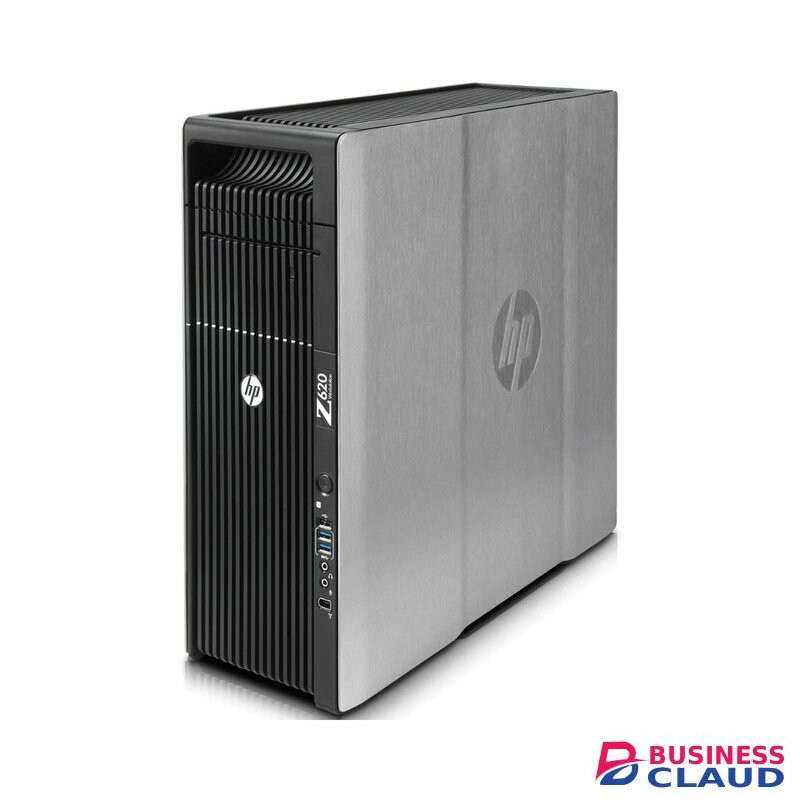

HP Z620 Workstation Intel Xeon E5-2609 V2 32GB RAM 2TB HDD + 2GB AMD FirePro™

More versatile than ever before. With up to 16 discrete processor cores, the HP Z620 Workstation packs a ton of computing and visualization power into a quiet, compact footprint. This dual-socket system helps you boost productivity with next-generation Intel® Xeon® processors and support for up to 8 displays.

Memory: 32GB DDR3 – 1600MHz ECC registered SDRAM | Up to 192GB

Memory Slots: Up to 12 DIMMs (8 DIMMs on system board, 4 DIMMs on 2nd CPU & Memory Module)

Storage: 2TB, 7200 rpm 6Gb/s 3.5″ SATA HDD

Optical drive: SATA DVD-ROM; SATA SuperMulti DVD+/-RW; Slot-load SATA DVD+/-RW; SATA Blu-ray writer

Chipset: Intel® C602

Graphics: AMD FirePro™ V5900 2GB GDDR5 Graphics Card

Processor: Intel® Xeon® E5-2609 v2 (2.5 GHz Clock speed, 10MB cache, 4 cores)

Ports: Front: 2x USB 3.0 | 1x USB 2.0 | 1x IEEE 1394a standard | 1x microphone in | 1x headphone out | HP 22-in-1 Media Card Reader (optional)

Back: 2x USB 3.0 | 4x USB 2.0 | 1x audio in | 1x audio out | 1x microphone in | 2x PS/2 | 2x RJ-45 to integrated Gigabit LAN | 1x serial via optional adapter | Rear power button with LED

Internal: 6x USB 2.0

The Performance You Demand.
Get massive system performance with a small footprint. The HP Z620 features the next evolution in processor technology and system architecture, setting the standard for versatility with support for a single Intel E5-1600 Series Xeon® processor or dual Intel E5-2600 Series Xeon® processors. Now with up to 16 cores, the HP Z620 powerhouse supports a full range of processors, to help you get more done every minute.

Bring Your Ideas To Life Faster.
The HP Z620 is designed to support next generation PCI express Gen3 graphics technology that doubles the bandwidth in and out of the card. The HP Z620 offers a huge variety of professional graphics from NVIDIA and AMD – from Pro 2D to Extreme 3D. With 800W 90% efficient power supply and support for up to 8 displays, the HP Z620 gives you the freedom of doing and seeing more.

Big Possibilities. Compact Form Factor.
With its innovative design, the HP Z620 Workstation gives you a near silent computing solution in a form factor that’s a perfect fit for space-constrained environments. And for easy servicing and upgrades, it features a completely tool-less chassis with integrated handles and a tool-free power supply.

Modify Your Machine.
Customize the HP Z620 Workstation the way you want to with a variety of expansion options, including USB 3.0 for
blazing fast speeds and up to 12 memory slots capable of supporting 96GB of the latest generation of DDR3 memory. With 3 internal drive bays and 2 external bays, choose from a variety of storage types including SATA 7.2K/10K, SAS 10K/15K and SSD.

Optical drive: SATA DVD-ROM; SATA SuperMulti DVD+/-RW; Slot-load SATA DVD+/-RW; SATA Blu-ray writer
Chipset: Intel® C602
Graphics: AMD FirePro™ V5900 2GB GDDR5 Graphics Card

Processor: Intel® Xeon® E5-2609 v2 (2.5 GHz Clock speed, 10MB cache, 4 cores)

Ports: Front: 2x USB 3.0 | 1x USB 2.0 | 1x IEEE 1394a standard | 1x microphone in | 1x headphone out | HP 22-in-1 Media Card Reader (optional)
Back: 2x USB 3.0 | 4x USB 2.0 | 1x audio in | 1x audio out | 1x microphone in | 2x PS/2 | 2x RJ-45 to integrated Gigabit LAN | 1x serial via optional adapter | Rear power button with LED
Internal: 6x USB 2.0

Bays: 2x external 5.25-inch bays | 3x internal 3.5-inch bays | Note: Fourth HDD occupies one external bay
Expansion slots: 2x PCI Express Gen3 x16 | 1x PCI Express Gen3 x8 | 1x PCI Express Gen2 x8 mechanical/x4 electrical | 1x PCI Express Gen2 x4 mechanical/x1 electrical | 1x Legacy PCI

Wired Protocol: Dual integrated Intel GbE LAN | Infineon TPM 1.2 Controller | Optional Broadcom GbE NIC | Optional Intel GbE NIC | Optional HP X520 10GbE Dual Port NIC
AC Adapter: Input: 800 Watt 90% efficient tool-free power supply

Input Devices: HP PS/2 keyboard | HP USB keyboard | HP USB Smart Card Keyboard | HP PS/2 mouse | HP USB optical mouse | USB 1000dpi laser mouse | HP USB optical 3-button mouse | USB SpaceMouse Pro | USB SpacePilot Pro

Security management: Security Cable with Kensington Lock | HP (CMT) Solenoid Lock | HP Solenoid Hood Lock & Hood Sensor |HP Z6/8 Adjustable Rail Rack Kit, Flush Mount

Software: HP Performance Advisor | HP Remote Graphics Software (RGS) 6.0 | HP ProtectTools Security | HP Power Assistant | PDF Complete – Trial Edition | Cyberlink Media Suite & PowerDVD

Systems Management: DAprice shown.1 required functionalities via Intel LAN on motherboard | Intel® Active Management
Technology (AMT) | Intel® vPro™ Technology | LANDesk Management Suite (HP recommended solution)

Dimensions (W x D x H): 6.75 In x 18.3 In x 17.5 In
Weight: 22.6 kg (49.9 lbs)
