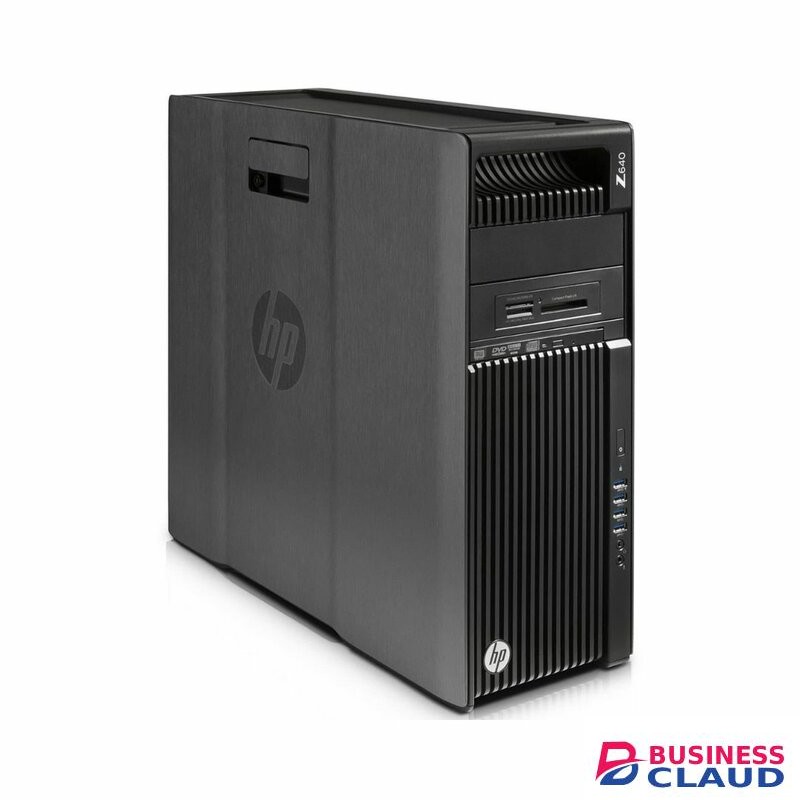

HP Z640 Workstation Intel Xeon E5-2609 V3 32GB RAM 2TB HDD + 2GB NVIDIA® Quadro

The HP Z640 is the successor to the HP Z620 personal workstation. Its architecture introduces several new functionalities and technologies. These include DDR4 memory architecture, Intel®-integrated USB 3.0, I/O slot improvements and better performance.

Memory: 32GB DDR4 – 2400MHz ECC registered SDRAM | Up to 256GB

Memory Slots: 4 DIMM (with 1 processor) and 8 DIMM (with 2 processors)

Storage: 2TB, 7200 rpm 6Gb/s 3.5″ SATA HDD

Optical drive: Slim SATA DVD-ROM; Slim SATA SuperMulti DVD writer; Slim SATA BDXL Blu-ray writer

Chipset: Intel® C612

Graphics: NVIDIA® Quadro® K420 2GB DDR3 Graphics Card

Processor: Intel® Xeon® E5-2609 v3 (1.9 GHz, up to 6.4 GHz with Intel Turbo Boost, 15MB cache, 6 cores)

Ports: Front: 4x USB 3.0 | 1x headset | 1x microphone

Back: 4x USB 3.0 | 2x USB 2.0 | 2x PS/2 | 1x RJ-45 (NIC) | 1x Audio Line-In | 1x Audio Line-Out.

Internal: 1x USB 2.0 ports available with a single 2×5 header | 1x USB 3.0 port available by a 2×10 header

Memory technology
The HP Z640 Workstation introduces support for DDR4 2133 MHz Registered DIMMs. The speed that the memory runs
is determined by the processors and is limited to 2133 MHz for the Haswell processor generation. DDR4 LR DIMMs
(load-reduced DIMMS) are also supported and enable a total system memory size up to 256 GB.

Mobility and flexibility
The flexible HP Z640 design allows for the system to be used in the tower orientation or rack-mounted with enterprise class rails. To offer additional flexibility in deployment, the HP Z640 is modular by design allowing it to be configured as a single or dual processor system.

Interior design
The streamlined interior is well organized and all user serviceable components are identified with consistent green touchpoints. Cables are hidden or efficiently routed, providing better component access and airflow management.

Quiet and reliable
Acoustic noise is very important to HP and our customers because a noisy environment can increase user fatigue
and reduces productivity. HP continues its leadership in this area with the design of the Z640. With its extra power and capability, one might expect the HP Z640 to be louder than the already very quiet HP Z620.

Thunderbolt™ 2technology
The HP Z640 Workstation provides Thunderbolt™ 2 technology via the optionalHP Thunderbolt™ 2 PCIe 1-port I/O card. The HP Thunderbolt™ 2 PCIe 1-port I/O Card uses the Intel DSL5520 Thunderbolt™ 2 controller and provides a single Thunderbolt™ 2 port.

Optical drive: Slim SATA DVD-ROM; Slim SATA SuperMulti DVD writer; Slim SATA BDXL Blu-ray writer
Chipset: Intel® C612
Graphics: NVIDIA® Quadro® K420 2GB DDR3 Graphics Card

Processor: Intel® Xeon® E5-2609 v3 (1.9 GHz, up to 6.4 GHz with Intel Turbo Boost, 15MB cache, 6 cores)

Ports: Front: 4x USB 3.0 | 1x headset | 1x microphone
Back: 4x USB 3.0 | 2x USB 2.0 | 2x PS/2 | 1x RJ-45 (NIC) | 1x Audio Line-In | 1x Audio Line-Out.
Internal: 1x USB 2.0 ports available with a single 2×5 header | 1x USB 3.0 port available by a 2×10 header

Bays: 2x external 5.25-inch bays |2x internal 3.5-inch bays
Expansion slots: 2x PCIe Gen3 x16 | 1x PCIe Gen3 x8 (open-ended) | 1x PCIe Gen2 x4 (open-ended) | 1x PCIe Gen2 x1 (open-ended) | 1x PCI

Wired Protocol: Integrated Intel® I218LM PCIe GbE
Wireless Protocol: Intel® 8260 802.11 a/b/g/n/ac with Bluetooth® 4.2 PCIe NIC (optional)
AC Adapter: Input: 925 W 90% efficient, active PFC

Input Devices: HP PS/2 Keyboard | HP USB Keyboard | HP USB SmartCard Keyboard | HP Wireless Keyboard and Mouse | HP PS/2 Mouse | HP USB Optical Mouse | HP USB 1000 dpi Laser Mouse | HP USB Optical 3-Button Mouse | HP SpaceMouse Pro USB 3D Controller | HP SpacePilot Pro 3D USB Intelligent Controller

Security management: HP Solenoid Hood Lock & Hood Sensor | HP Business PC Security Lock Kit | TPM 1.2 certified
Software: HP Performance Advisor | HP Remote Graphics Software (RGS) 7.1 | CyberLink PowerDVD/Power2Go | Foxit PhantomPDF Express | Buy Office

Systems Management: DAprice shown.1 required functionalities via Intel® LAN on motherboard |Intel® Active Management Technology (AMT) |. Intel® vPro™ Technology | Remote Manageability Software Solutions

Dimensions (W x D x H): 6.75 In x 18.3 In x 17.5 In
Weight: 21.8kg (48.0 lbs)
