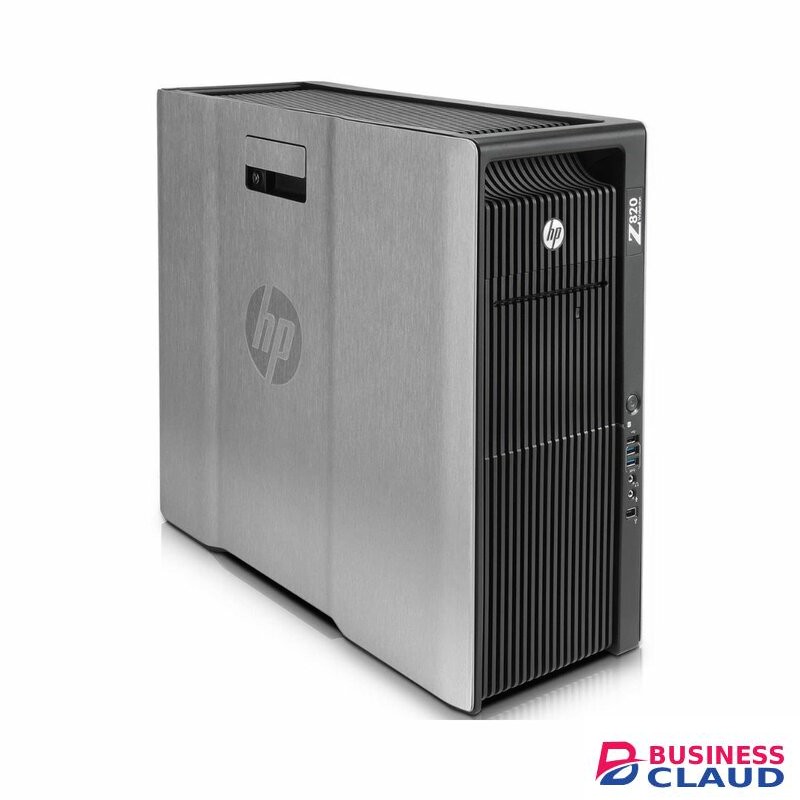

HP Z820 Workstation Intel Xeon E5-2640 32GB RAM 2TB HDD + 2 GB GDDR5 NVIDIA Quad

Built for high-end computing and visualization. The dual-processor HP Z820 Workstation delivers outstanding performance, award-winning industrial design, and tool-free serviceability in the industry’s most expandable chassis. With next generation Intel Xeon processors, support for up to 16 processing cores, and the latest professional graphics, can tackle even the most demanding projects like never before.

Memory: 32GB DDR3 8-channel ECC – 1600 MHz RAM | Up to 16 DIMM slots | Up to 512GB ECC RAM

Storage: 2TB, 7200 rpm 6Gb/s 3.5″ SATA HDD

Optical drive: DVD-ROM, DVD+/-RW Super-Multi and Slot-Load, Blu-ray Writer

Chipset: Intel® C602 Chipset

Graphics: NVIDIA Quadro 4000 2 GB GDDR5 Graphics Card

Processor: Intel® Xeon® E5-2640 (2.5 GHz, up to 3.5 GHz with Intel Turbo Boost, 15 MB cache, 6 cores)

Ports: Front: 2x USB 3.0 | 1x USB 2.0 | 1x IEEE 1394a standard | 1x microphone in | 1x headphone out, HP 22-in-1 Media Card Reader (optional)

Back: 2x USB 3.0 | 4x USB 2.0 | 1x IEEE 1394a | 1x audio in | 1x audio out | 1x microphone in | 2x PS/2 | 2x RJ-45 to integrated Gigabit LAN | 1x serial

Internal: 6 USB 2.0 ports available by three 2×5 headers

Multitasking Made Easy.
The HP Z820 Workstation employs a variety of Intel® Xeon® E5-2600 processors that enable next generation PCI Express technology. With support for 2 processors, the HP Z820 can operate with up to 16 processing cores, delivering ultimate performance to help you accomplish more every minute. Featuring the Xeon® C600 series chipset, LSI SAS 2308 controller, and dual Quick Path Interconnects between the processors, the two work together to help you work more effectively than ever before.

Built for high-end computing and visualization.
The dual-processor HP Z820 Workstation delivers outstanding performance, award-winning industrial design, and tool-free
serviceability in the industry’s most expandable chassis. With next generation Intel® Xeon® processors, support for up to 16 processing cores, and the latest professional graphics, you’ll tackle even the most demanding projects like never before.

Ultra-Powerful Visuals and High Performance Computing.
Built to support next generation PCIe Gen3 graphics from AMD and NVIDIA, the HP Z820 Workstation currently offers a wide range of cards from Pro 2D to ultra high-end 3D graphics to get the job done. With dual graphics processor support, the HP Z820 can drive up to 8 displays, giving you the power and space you need to multitask like a pro. Plus, get the highest performing GPU computing solutions available in the Z family, like NVIDIA’s Maximus, on the HP Z820.

Unmatched Design. Inside and Out.
With its expandable design, the HP Z820 Workstation gives you the confidence to produce your best work. Designed for a wide-range of needs, the HP Z820 offers enhanced tool-free access and unbelievable power at whisper-quiet levels. The result is unparalleled design power in a system that is sleek and uncluttered, inside and out.

Optical drive: DVD-ROM, DVD+/-RW Super-Multi and Slot-Load, Blu-ray Writer
Chipset: Intel® C602 Chipset
Graphics: NVIDIA Quadro 4000 2 GB GDDR5 Graphics Card

Processor: Intel® Xeon® E5-2640 (2.5 GHz, up to 3.5 GHz with Intel Turbo Boost, 15 MB cache, 6 cores)

Ports: Front: 2x USB 3.0 | 1x USB 2.0 | 1x IEEE 1394a standard | 1x microphone in | 1x headphone out, HP 22-in-1 Media Card Reader (optional)
Back: 2x USB 3.0 | 4x USB 2.0 | 1x IEEE 1394a | 1x audio in | 1x audio out | 1x microphone in | 2x PS/2 | 2x RJ-45 to integrated Gigabit LAN | 1x serial
Internal: 6 USB 2.0 ports available by three 2×5 headers

Bays: 3x external 5.25-inch bays |4x internal 3.5-inch bays (SATA and SAS controllers)
Expansion slots: 2x PCI Express Gen3 x16 | 1x PCI Express Gen3 x16 (Available only with 2nd CPU) | 1x PCI Express Gen3 x16 mechanical/x8 electrical | 1x PCI Express Gen3 x8 mechanical/x4 electrical | 1x PCI Express Gen2 x8 mechanical/x4 electrical | 1x Legacy PCI

Wired Protocol: Dual integrated Intel GbE LAN | Infineon TPM 1.2 Controller | Optional Broadcom NIC | Optional Intel NIC
AC Adapter: Input: 850W 88% Efficient wide-ranging, active Power Factor Correction or 1125W 90% Efficient wide-ranging, active Power Factor Correction

Input Devices: HP PS/2 standard keyboard, HP USB standard keyboard, HP USB Smart Card Keyboard, HP PS/2 optical scroll mouse, HP USB 2-button optical scroll mouse, HP USB 3-button optical mouse, USB SpaceExplorer, USB SpacePilot, USB Laser Mouse

Security management: Serial, Parallel, USB, Audio, Network, Enable/Disable Port Control |Removable Media
Write/Boot Control | Power-On/Setup Password | System/Emergency ROM Flash Recovery | HP Vision Diagnostics
Offline Edition | Access Panel Key Lock | ACPI-Ready Hardware | Trusted Platform Module Chip with optional ProtectTools Software | Integrated Chassis Handles | BIOS 32-bit Services | PCI 3.0 Support | Replicated Setup | Boot Control

Systems Management: Intel Active Management Technology (AMT) | Intel® vPro™ Technology | LANDesk Management Suite (HP recommended solution) | Microsoft System Center Configuration Manager | HP Client Automation Enterprise

Dimensions (W x D x H): 8.0 In x 20.7 In x 17.5 In
Weight: 29.5kg (65 lbs)
