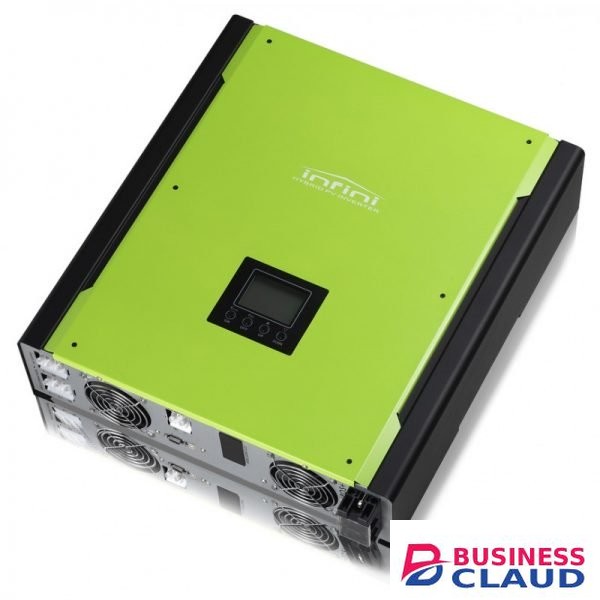

InfiniSolar 2KW/3KW On-Grid Inverter with Energy Storage
SKU.: BC12790188
✓ In stock
3KW On-Grid Inverter with Energy Storage Self-consumption and Feed-in to the grid Programmable supply priority for PV, Battery or Grid User-adjustable battery charging current suits different types of batteries Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup Built-in timer for various mode of on/off operation Multiple communication for USB, RS-232, Modbus and SNMP Monitoring software for real time status display and control Technical specifications RATED OUTPUT POWER: 3000 W MAXIMUM CHARGING POWER: 1200 W Maximum DC Power: 3200 W Nominal DC Voltage / Maximum DC Voltage: 360 VDC / 500 VDC Start-up Voltage / Initial Feeding Voltage: 360 VDC / 500 VDC MPP Voltage Range: 360 VDC / 500 VDC Number of MPP Trackers / Maximum Input Current: 360 VDC / 500 VDC GRID OUTPUT (AC) Nominal Output Voltage: 208/220/230/240 VAC Output Voltage Range: 184 - 264.5 VAC Nominal Output Current: 13.1 A Power Factor: > 0.99 OFF-GRID OPERATION AC INPUT AC Start-up Voltage/Auto Restart Voltage: 120 - 140 VAC / 180 VAC Acceptable Input Voltage Range: 170 - 280 VAC Number of MPP Trackers / Maximum Input Current: 25A PV INPUT (DC) Maximum DC Voltage: 500 VDC MPP Voltage Range: 250 VDC ~ 450 VDC Maximum Input Current: 1 / 1 x 13 A BATTERY MODE OUTPUT (AC) Nominal Output Voltage: 208/220/230/240 VAC Output Waveform: Pure Sinewave Efficiency (DC to AC): 93% HYBRID OPERATION PV INPUT (DC) Nominal DC Voltage / Maximum DC Voltage: 360 VDC / 500 VDC Start-up Voltage / Initial Feeding Voltage: 116 VDC / 150 VDC MPP Voltage Range: 250 VDC ~ 450 VDC Maximum Input Current: 1 / 1 x 13 A GRID OUTPUT (AC) Nominal Output Voltage: 208/220/230/240 VAC Output Voltage Range: 184 - 264.5 VAC Nominal Output Current: 13.1 A* AC INPUT AC Start-up Voltage/Auto Restart Voltage: 120 - 140 VAC / 180 VAC Acceptable Input Voltage Range: 170 - 280 VAC per phase Maximum AC Input Current: 25A BATTERY MODE OUTPUT (AC) Nominal Output Voltage: 208/220/230/240 VAC Efficiency (DC to AC): 93% BATTERY & CHARGER Nominal DC Voltage: 48 VDC Maximum Charging Current: 25A INTERFACE Communication Port: RS-232/USB Intelligent Slot: Optional SNMP, Modbus, and AS-400 cards available
You can explore our full range of Electronics.
from 1
USh 9,239,400.00
Incl. 0.16% VAT
