Pioneer DMH-ZF7650BT 9" Wireless AV Receiver With Apple CarPlay & Android Auto

The Pioneer DMH-ZF7650BTprovides amazing features and quality without breaking the budget including a stunning 9″ WSVGA (1,024 x 600 pixel) capacitive screen, a sleek flat design, capacitive touch buttons and including our new “Direct” key to quickly access the Apple CarPlay or Android Auto GUI.

specs_on_manufacturer_website

Pioneer DMH-ZF7650BT 9" Wireless AV Receiver KEY FEATURES:

9” Capacitive WSVGA Touch Panel Floating Display

Apple CarPlay (Wired, Wireless)

Android Auto (Wired, Wireless)

1DIN Rear Chassis for Flexible Installation

Phone Mirroring with Weblink Cast

Personalization with PxLink

Pioneer DMH-ZF7650BT 9" Wireless AV Receiver Description

9″ WSVGA Resolution Display

The 9″ capacitive touch display supports a WSVGA resolution (1,024 x 600 pixel). Utilising a high brightness display and high proximity panel construction allows for a bright easy to read display with wide viewing angle. This provides an expansive viewing experience that makes map reading easier, clarity of Apple CarPlay, Android Auto™ or Pioneer user interfaces clearer and also enables powerful and impressive video & still image display when compared to traditional WVGA screens.

Apple Carplay™ (wireless or Wired Connection)
The best iPhone® experience on four wheels; Apple CarPlay™ is a smarter, safer way to use your iPhone® while you drive. You can get directions, make calls, send and receive messages, and enjoy your favourite music. You can even connect wirelessly to stay focused on the road.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

Android Auto™ (wireless or Wired Connection)
Enjoy seamless connectivity and control of your compatible Android™ smartphone in the car. Android Auto is a simpler, safer way to use your phone in the car. Get all your favourite maps, media, and messaging apps on your car display. You can even connect wirelessly to stay focused on the road.

To use Android Auto on your car display, you’ll need an Android phone running Android 8 or higher, an active data plan, and the Android Auto app.

To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at Businessclaud.com

iDatalink Maestro Compatible
Keep your factory features and expand your level of in-vehicle connectivity with Pioneer receivers and iDatalink Maestro RR. When your DMH-ZF7650BT receiver is installed in a compatible vehicle using the iDatalink Maestro RR interface# (sold separately), you’ll be able to enjoy the performance and features of the DMH-ZF7650BT receiver plus touchscreen control over key factory audio features.

The DMH-ZF7650BT supports factory functions via the iDatalink Maestro RR interface including, Steering Wheel Controls, Media Player (including the factory AUX-in and USB ports), Hands-Free Telephone, Voice Commands, Secondary Display Support, Visual parking assistance, HVAC 1 or 2 compatible, Multi-camera control*……and more! For more information on

Split Screen for Apple Carplay
You can now display Apple CarPlay and the receiver’s menu at the same time on one screen. This function is useful such as when you want to operate the music (i.e. Radio or USB) while looking at the map screen.

Apple CarPlay is a trademark of Apple Inc. registered in the U.S. and other countries.
Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.

Improved Bluetooth and Wi-Fi Connectivity
Improved Bluetooth and Wi-Fi connectivity have been achieved to provide users with clearer hands-free calling, improved sound quality when streaming music with Apple CarPlay or Android Auto as well as ensuring a more stable connection.

“Floating” Display
The design of the DMH-ZF7650BT structure is unique, combining a universal 1-DIN size chassis with a large 9-inch display that can be configured for installation as a floating mount type applicable to most vehicles1. When installed as a floating mount type, the screen offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in the vehicle’s dash*.
* In-dash type flush mount capability varies by vehicle and/or third-party installation kit availability, sold separately. Limited cable length available.

Selectable Viewing Modes
Light / Dark mode for enhanced visibility – By changing the colours of the UI background and text, visibility and legibility can be optimized based on the ambient light conditions, such as day or night. Light mode is intended to reduce the effect of ambient light reflections in bright conditions (daytime), while Dark mode may help to reduce screen glare in dark conditions (night time). Light / Dark mode can be selected manually or set to automatically correspond to the time of day and/or illumination settings of the vehicle*.

*Requires connection to a compatible vehicle illumination circuit of the vehicle during installation. Third-party installation adapter or interface may be required, sold separately.

PxLink Smartphone App
Using the new Pioneer “PxLink” smartphone app users can customize the display on their compatible multimedia receiver including adding your own background image, customize their shortcut keys and perform OTA (Over The Air) firmware updates*. Pioneer is letting you be in control like never before!

Available for free download from the Google Play or App store.

*Access to the Pioneer PxLink app and mobile data required.

Additionally, with the built-in WebLink® Host application and a USB connection, drivers can also use the WebLink® Cast feature to mirror and interact with their iOS or Android smartphone’s screen on the receivers’ displays and access virtually all the same powerful navigation, communication, productivity and entertainment apps on a bigger screen and driver-friendly format.

The compatible smartphone must be connected to a compatible Pioneer receiver via USB and Bluetooth simultaneously to enable full WebLink functionality.
Certain apps may restrict some functions, such as video and music playback.
Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

WebLink® browser
Keeping connected while away is of growing importance. Now, with WebLink Browser you can access many of your favourite websites, login to your streaming services and playback video as well as being able to bookmark your favourite sites.
#Only available on compatible Android handsets. Not all streaming services are compatible.

2 X Phone Full-Time Bluetooth Connection*
You can now simultaneously connect and control 2 x smartphones via Bluetooth Ver. 5.0. The auto connection function automatically pairs the two phone so incoming calls can be picked up by either of the paired phones. No more having to pair and un-pair devices. Bluetooth Audio Streaming (A2DP, AVRCP 1.6) makes it possible to display information embedded in songs.
* Connection conditions apply.

Reverse Camera Input
Reversing can be a stressful experience. The reverse camera input allow you to connect a reverse camera for improved safety (visibility of hazards) and peace of mind. Particularly helpful when parking your vehicle or towing.

Pioneer DMH-ZF7650BT 9" Wireless AV Receiver Specs

Display

Screen Size 9"

Resolution WSVGA (1,024 x 600)

Touchscreen Capacitive

LED Backlight Yes

Colour Customisation 5 Display & 112 Key Colour

Bluetooth

Built-in Bluetooth Yes Ver. 5.2

Dual Phone Connection Yes

Hands-Free Profile (HFP) Yes

Audio/Video Remote Control Profile (AVRCP) Yes

Advanced Audio Distribution Profile (A2DP) Yes

Serial Port Profile (SPP) Yes

Smartphone Pairing Memory 5 Devices

Tuner

AM/FM Tuner Yes

DAB+ Tuner No

Presets 18 FM, 6 AM

Best Station Memory (BSM) Yes

Local Seek Tuning Yes

RDS Yes

Smartphone Integration

Apple CarPlay™ Yes (Cable or Wireless) Inc Split Screen Function

Android Auto™ Yes (Cable or Wireless)

Alexa Built In No

Smartphone App PxLink (iOS & Android)

Spotify® Control Yes (via CarPlay / Android Auto)

WebLink® Yes Ver. 3.0

Live Information No

Siri® Eyes Free iPhone Only

Web Browser Android Only

Digital Media Playback

CD/CD-R/CD-RW Playback No

DVD/DVD-R/RW/DVD-Video Playback No

MP3 Audio Playback USB

WMA Audio Playback USB

AAC Audio Playback USB

WAV Audio Playback USB

FLAC Audio Playback USB

MPEG-4 Video Playback USB

DivX Video Playback No

WMV Video Playback USB

JPEG Photo Slideshow Viewer USB

Full HD Video Playback USB

Audio

Hi-Res Audio Certified No

RCA Pre-outs 3 pair, 2V (front/rear/subwoofer)

Built-in Amplifier MOSFET 4 x 50W

Auto EQ & Time Alignment (CD-MC20 required) No

Specialized Audio Parts Yes

D/A Converter 24-bit

Crossover Network HPF/LPF

3-Way Audio Network Mode Yes

Subwoofer Control Yes

Advanced Sound Retriever Yes

Manual Time Alignment Yes

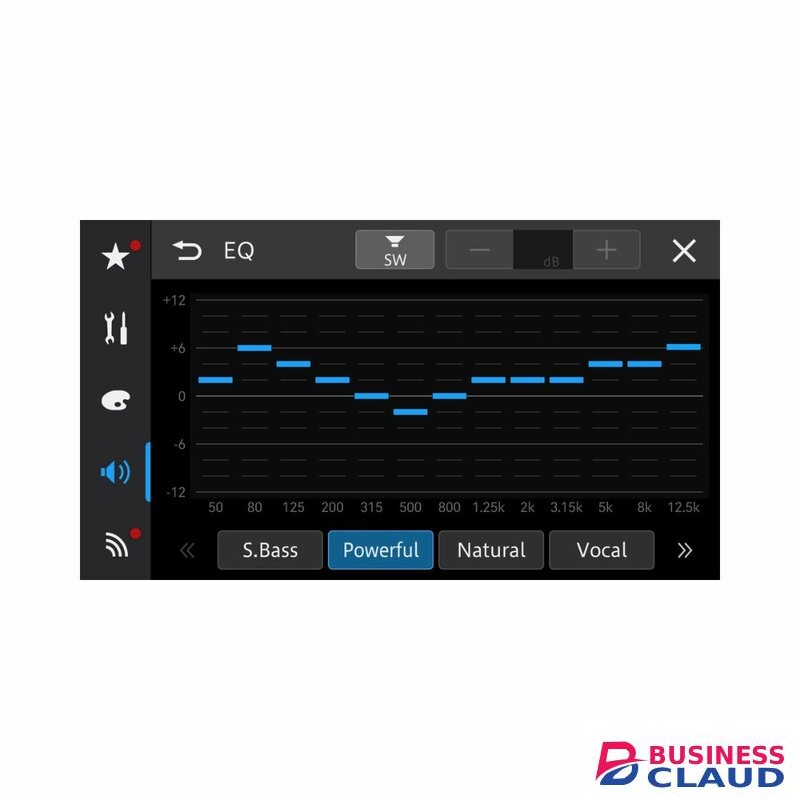

Equalizer 13 Band Graphic EQ

Expandability

Wi-Fi Connectivity Yes

USB Single Rear Type-A

AUX Rear (Audio/video)

Reverse Camera Input Yes

Parking Assist Guidelines Yes

Wired Remote Input Yes (Learning)

HDMI No

Composite Video Output Yes

General

Remote Control No

Warranty 12 Month

Chassis Size 1 DIN (156mm Depth)
