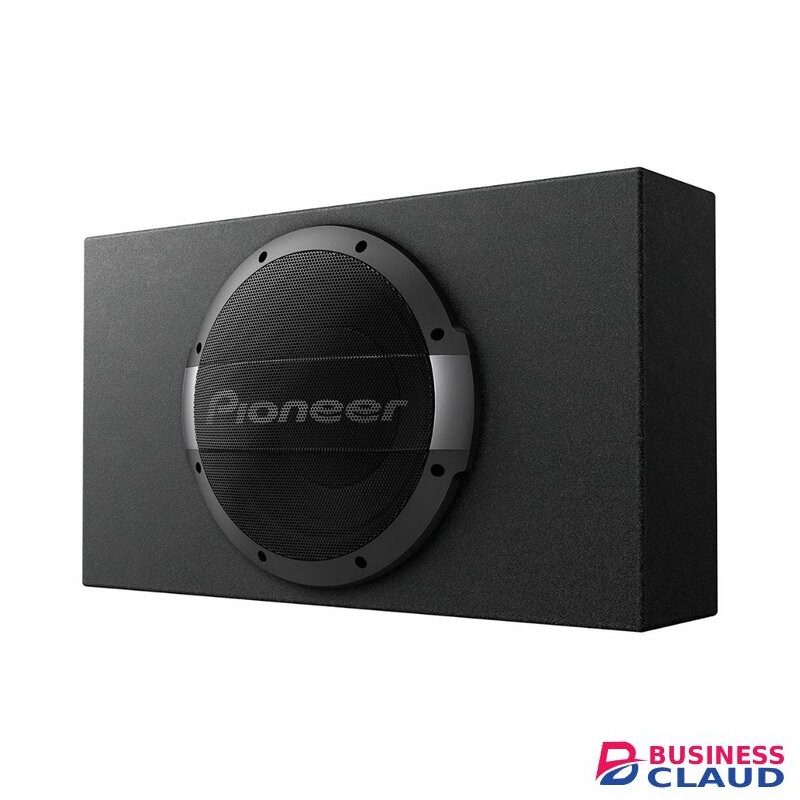

PIONEER TS-WX1010LA 10" Shallow Mount Sealed Enclosure With Built

KEY FEATURES

1,200W Max. 300W Nom. Power (Sub)

600W Max. 300W Nom. Power (Amp)

Sealed Enclosure Design

Designed for Easy Installation Under the Seat

Dimensions: 21" x 11-3/4" x 5-7/8"

Powerful Amplified Subwoofer

Built with a high bandwidth, high output and low distortion 300-watt Class D amplifier mated to high sensitivity woofers specifically optimized for use in small, sealed enclosures.

Flexible sound adjustment

User adjustable controls include an LPF, phase control, variable bass boost level (0 to +12 dB), and bass boost frequency adjuster (40Hz to 100Hz) to provide enhanced subwoofer control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.

Installation Flexibility

The innovative shape of the enclosure is designed for high rigidity and to reduce internal standing waves while also increasing installation flexibility. Can be installed freely in the cabin or under seats and re-positioned with the subwoofer firing rear, front or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface.

What’s in the Box

TS-WX1010LA Sealed Active Subwoofer

4 Mounting Brackets

2 (5 x14mm) screws

8 (M5 x 25mm) screws

1 Wired Remote Bass Controller Knob

1 10.5" RCA input harness (4-pin Molex plug/2 female RCAs)

1 40A ATO fuse in holder (installed on power wire)

1 Allen Key Wrench Tool

Installation Manual

Warranty Sheet
