Sony XM

Key Features

. 330 Watts RMS x 1 @ 4 ohms
• 600 Watts RMS x 1 @ 2 ohms
• Total Peak Power: 1100 Watts
• CEA-2006 Compliant
• Removable top panel conceals complete crossover & level controls
• Signal to Noise Ration: 65 dBA
• Speaker-level (high-level) inputs with Auto Turn-on

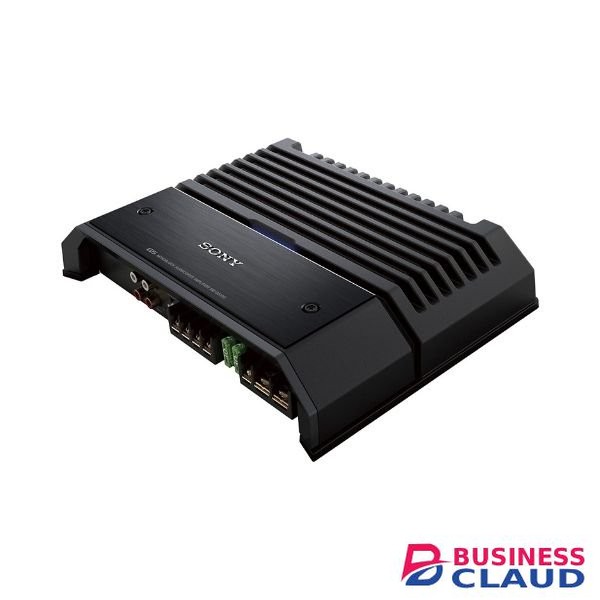

·Sony XM-GS100 Monoblock subwoofer amplifier affords incredible installation flexibility thanks to its compact size and packs quite a punch. GS series amplifiers offer tremendous value including convenience features such as: modern cosmetics, variable cross-overs and singe-side electrical connections to suit almost any application.

·The Sony GS-100 Class-D Monoblock subwoofer amplifier affords incredible installation flexibility thanks to its compact size and packs quite a punch. GS series amplifiers offer tremendous value including convenience features such as: modern cosmetics, variable cross-overs and singe-side electrical connections to suit almost any application.

·The XM-GS100’s efficient Class-D mono block design, compact chassis size and single sided connections provide multiple mounting options while maximizing output and control for your audio system.

·The XM-GS100 delivers 330 watts RMS power at 4 ohm with 14.4 volts, from 20 Hz – 200 Hz with less than 1% THD+N. This unit has a maximum output power of 600 mono at 4 ohm.

·The XM-G100 delivers 600 watts RMS power at 2 ohm with 14.4 volts, at 50 Hz with less than 1% THD+N. This unit has a mximum output power of 1100 watts mono at 2 ohm.

·The XM-GS100 has a removable top panel that conceals a variable 12 dB/oct LPF (Low-Pass filter) at 50-300Hz as well as a 12 dB/octave sub-sonic HPF (High-Pass filter), variable at 6-70Hz to maximize your systems potential. This amplifier also offers a variable 0-10 dB 40 Hz bass boost circuit to increase low frequency response.

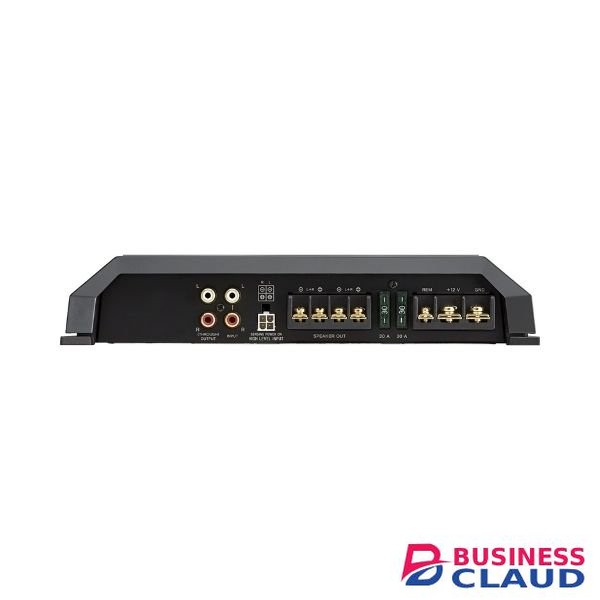

·As well as traditional RCA inputs, the XM-GS100 offers direct connections (High Level Input) to the speaker output of your car audio unit if it is not equipped with RCA line outputs. The auto sensing, high level input feature also allows the amplifier to be powered up without the need for remote power turn on connections.
