Sony XM-5ES Mobile ES™ Series 5

The XM-5ES Mobile ES™ 5-channel car amplifier will take your in-car sound to the next level. Engineered with pure audio precision, you can hear every detail of music brought to life, with an extended frequency response, driven by 100W x 4 (330W x 2 bridged) + 450W x 1 RMS output power.

Specs_on_manufacturer_website.

Sony XM-5ES Mobile ES™ Series 5-channel car amplifier KEY FEATURES:

100 W x 4 (330 W x 2 bridged) and 450 W x 1 RMS output power at 4 ohms

165 W x 4 and 750 W x 1 RMS output power at 2 ohms

High-Resolution Audio compatible

Signal summing for seamless connection to factory audio and combined pre-outs

Updated connection terminal/control panel design, and supplied bass remote

Sony XM-5ES Mobile ES™ Series 5-channel car amplifier Description

Superior sound meets versatility

The XM-5ES Mobile ES™ 5-channel car amplifier will take your in-car sound to the next level. Engineered with pure audio precision, you can hear every detail of music brought to life, with an extended frequency response, driven by 100W x 4 (330W x 2 bridged) + 450W x 1 RMS output power. The new signal summing feature and combined pre-outs allows for seamless installation in various types of vehicles

100W x 4 + 450W x 1 RMS output power

Enjoy dynamic sound with an output power of 100W x 4 (330W x 2 bridged) + 450W x 1 RMS at 4 ohms / 165W x 4 + 750W x 1 RMS at 2 ohms. The highly efficient class-D amplifier boosts your in-car music, providing a variety of speaker configurations of your choice.

The Way The Artists Truly Intended

Listen to the subtlest nuances of studio-quality sound in higher than CD quality with High-Resolution Audio. Feel as if the artist was performing right in front of you. The XM-5ES 5-channel amplifier is engineered to enhance every track — including High-Resolution Audio files.

A range of premium circuit components work together for ultimate efficiency and pitch-perfect sound reproduction, giving every road trip the soundtrack it deserves.

Powerful sound with astonishing clarity

Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality.

Sony XM-5ES Mobile ES™ Series 5-channel car amplifier Specs

Amplifier

Channel Configuration

4-ch/3-ch/2-ch/1-ch (Mono)

High Pass Filter

Variable (500–5 kHz)

Low Pass Filter

Variable (50–500 Hz)

Low-Pass Filter Slope

12 dB/oct + 24 dB/oct

High Pass Filter Slope

12 dB/oct

CTA S/N

77dB

Signal to Noise Ratio

100dB

CTA Rated Output Power

4 ohms

100 W x4, 450 W x1

Details

Gold Plated Connectors

Yes

MOSFET

Yes (Power Supply)

Speaker Level Input

Yes

Subsonic High Pass Filter

Yes

CTA Power output

100 W x4 + 450 W x1

General Features

Frequency Response

10 Hz–40 kHz / 10–500 Hz

Tolerance

+0.5/-3 dB

Total Harmonic Distortion at 1 kHz (%)

Less than 0.05%

Rated Output Power (14.4 V)

2 ohms

165 W x4 + 750 W x1 at 1 kHz, 1% THD

4 ohms

100 W x4 + 450 W x1 at 1 kHz, 1% THD

4 ohms — BTL (Bridge-Tied Load)

330 W x2 BTL+ 450 W x1 at 1 kHz, 1% THD

Size & Weight

Dimensions (W x H x D)

14.96" x 2.36" x 8.46"

Sony XM-5ES owner's manual

5-Channel amplifier

Four 40-amp ATO fuses (installed)

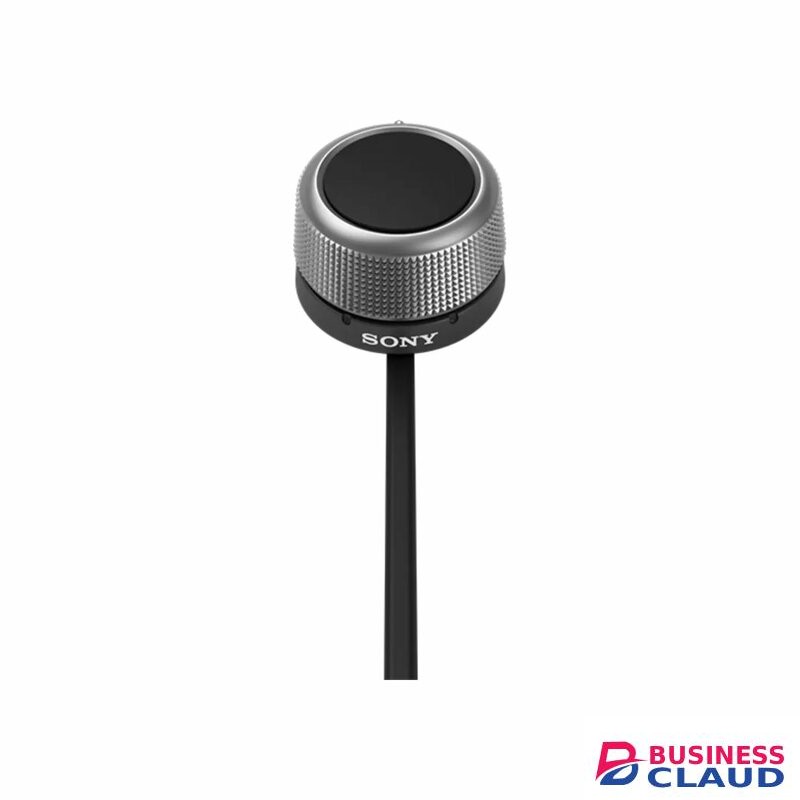

Wired remote control (attached 18' cable)

2.5mm Allen wrench

Remote mounting bracket

Adhesive backed pad

Four 3/4" Screws

Two 1/2" Screws

Two 1/4" Screws

Warranty information
