Sony XM-GS4 4

Key Features

• 4-channel car amplifier
• 70 watts RMS x 4 at 4 ohms
• 160 watts RMS x 2 at 4 ohms in bridged mode
• frequency response: 10-100,000 Hz
• separate variable high- and low-pass filters for front and rear channels

Sony XM-GS4 4-channel amplifier will drive your whole system, sending 70 watts RMS to each of your front and rear speakers. Or you can switch the amp into 2-channel mode to power a couple of subs with 160 watts RMS each. This compact amp sports a hefty heat sink that gets rid of the heat that’s generated when you’re pushing your system hard. The Sony’s XM-GS4 4-channel amplifier also uses a cooling fan, which automatically adjusts its speed for the heat it detects, ensuring this small amplifier will always produce the power that’s expected.

Product highlights:

• 4-Channel Hi-Resolution Audio Compatible 4-Channel Car Amplifier
• 4 ohms: 150 watts x 4 chan.
• 2 ohms: 175 watts x 4 chan.
• Bridged, 4 ohms: 350 watts x 2 chan.
• Total power output: 700 watts MAX
• CEA-2006 Compliant Amplifier
• Ultra-wide frequency range that extends up to 100 kHz
• Engineered for minimal noise and maximum efficiency
• High-quality electrolytic capacitors assist in powering bright, versatile sound
• High-current transistor ensures fast, efficient power transfer for responsive operation
• Low flux choke coils in the power block deliver low-noise, high-quality sound reproduction
• Twisted-wire cable structure provides additional noise resistance from electromagnetic interference
• Premium Schottky-barrier diodes provide faster switching and superior system efficiency for smoother, more stable audio
• Potentiometers are highly reliable, for consistently minimal noise
• Pulse Width Modulated MOSFET power supply

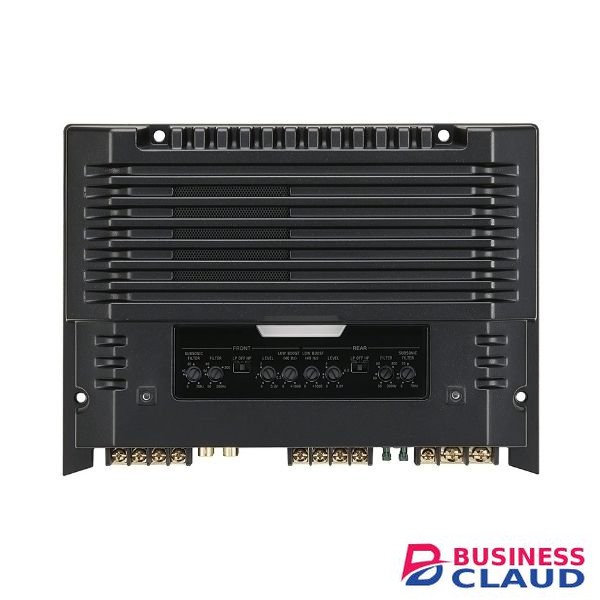

• Removable top panel conceals complete crossover & level controls
• Compact aluminum alloy chassis
• LED power (blue) and protect (red) indicators
• Soft start turn-on
• 4, 3 or 2 channel stereo operation
• Speaker-level (high-level) inputs with Auto Turn-on for OEM Integration
• Gold-plated RCA level inputs
• Gold-plated screw terminals
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity:
• Low level: 300mV – 6V
• High level: 1.2V – 12V
• Frequency Response: 10 – 100,000 Hz (+0/-3 dB)
• Tolerance: +0.5 / -3 dB
• Total Harmonic Distortion (THD): 0.05% (1kHz @4 ohm)
• Signal to Noise Ration: 100 dBA
• Selectable crossover modes: LP / OFF / HP
• Variable crossover filter point: 50 – 300 Hz, 12 dB/octave
• Subsonic filter: 6 – 70 Hz , 12 dB/octave
• Variable Low/Bass Boost: 0 to +10 dB bass boost at 40 Hz
• Current Drain (Rated output @ 4ohms): 33A
• 4 – 8 gauge power and ground wiring is recommended for installation.
• Dimensions: 10-3/4″W x 8″D x 2-1/8″H
