Sony XS-162ES Mobile ES™ Series 6-1/2" Component Speaker System
SKU.: BC12768929
✓ In stock
Sony's ES Mobile XS-162ES car speaker is tailor made to suit all your listening needs. A Driving & Listening Experience Like Never Before With Sony's XS-162ES Car Speaker.
Specs_on_manufacturer_website .

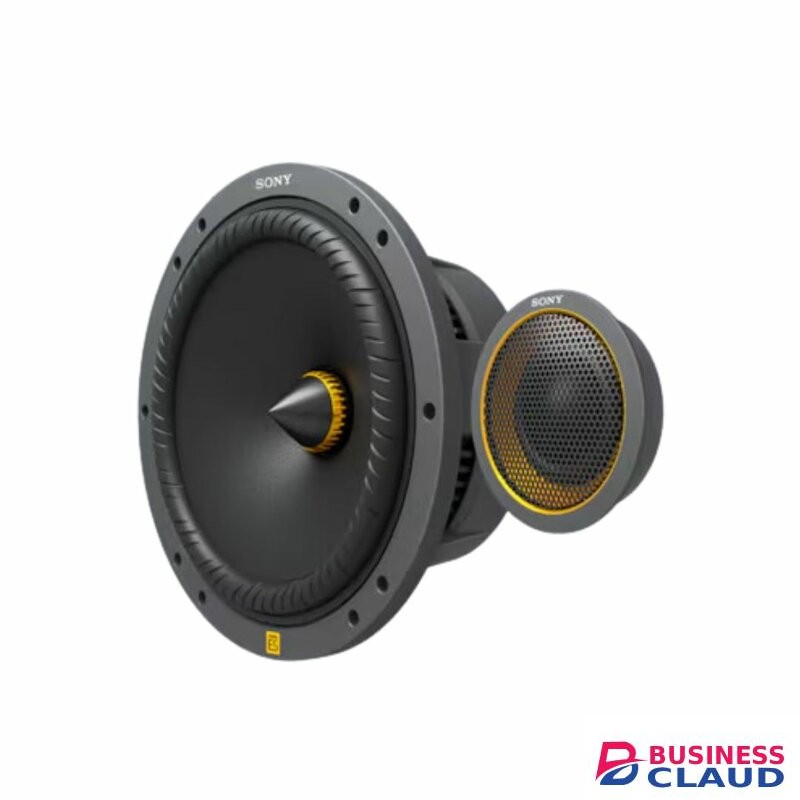

Sony XS-162ES Mobile ES™ Series 6-1/2" component speaker system KEY FEATURES:
component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
6-1/2" Mica Reinforced Cellular aramid fiber woofer
1" synthetic fiber dome tweeter
handles up to 90 watts RMS (270 watts peak power)
frequency response: 40-40,000 Hz
sensitivity: 89 dB
top-mount depth: 2-3/16"
Sony XS-162ES Mobile ES™ Series 6-1/2" component speaker system Description
Elevate your sound
The XS-162ES 6.5" (16cm) component speakers deliver astonishing clarity and imaging to your in-car listening. Redefine your listening with these innovative Mobile ES speakers.
Lightweight Rigid Cellular Aramid Fiber Matrix Woofer
The main speaker diaphragm on the XS-162ES is crafted from Sony's unique Lightweight Rigid Cellular material, formerly known as MRC. The latest generation compound has been further optimised alongside mechanical driver improvements, to deliver an even wider frequency response and smoother, more natural sound characteristics.
Optimal formulation
Embedding in a unique matrix with aramid fibers suppresses diaphragm resonance and minimises distortion, not only in the lows, but also in the mid and higher frequencies. The result is sound that is powerful at all frequencies and uncommonly clean, even at high volume.
Bi-amp capable crossover with gain selector
The audiophile-grade crossover features an optimal, lower-resistance film capacitor for smooth high-end. It's bi-amp capable design mitigates current distortion to the tweeter when running the woofer with high input levels. A dedicated gain selector helps keep balance of woofer and tweeter signal levels, and enables tweeter level adjustment even when driving the components from a single amplifier.
Separated Notch Edge Surround
The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.
Five-beam Frame Structure & Dynamic Air Diffuser
The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.
Tweeters to hit the high notes
Compatible with High-Resolution Audio, a soft dome tweeter diaphragm is directly attached on the voice coil, designed to cover your music's ultra-high ends, with a frequency range extending up to 40kHz.
Progressive Height Rate Spider
The acoustically-optimised spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone.
Phase plug
Structure cutaway
Discover structures of the Mobile ES speaker, including newly applied mechanical approaches such as Separated Notch Edge Surround, Five-beam Frame design, and Dynamic Air Diffuser.
Mobile ES Series
Immerse yourself in excellent in-car entertainment
Engineered for ultimate listening pleasure on the road, the Mobile ES Series products bring the very best of your music and connectivity together, for a driving experience like never before.
Sony XS-162ES Mobile ES™ Series 6-1/2" component speaker system Specs
Size & Weight
WEIGHT (WOOFER)
950 g
WEIGHT (TWEETER)
60 g
WEIGHT (NETWORK BOX)
160 g
Speaker System
CONFIGURATION
Component, 2-way
SIZE
6 1/2" (16 cm)
General Features
PEAK POWER
270 W
RMS POWER
90 W
RATED POWER
60 W
EFFECTIVE FREQUENCY RANGE
40-40,000 Hz
OUTPUT SOUND PRESSURE
89 dB ±2dB SPL (1W,1m)
IMPEDANCE (OHMS)
4
Woofer
TYPE
Cone
WOOFER DIAPHRAGM MATERIAL
Lightweight Rigid Cellular Aramid Fibre Matrix
WOOFER SURROUND MATERIAL
Rubber (Separated Notch)
WOOFER MAGNET MATERIAL
Ferrite
Tweeter
TYPE
Soft Dome
DIAMETER
1" (2.5 cm)
TWEETER DIAPHRAGM MATERIAL
Synthetic Fiber
TWEETER MAGNET MATERIAL
Neodymium
Sony XS-162ES owner's manual
If you need assistance accessing this owner's manual, please give us a call.
2 Woofers

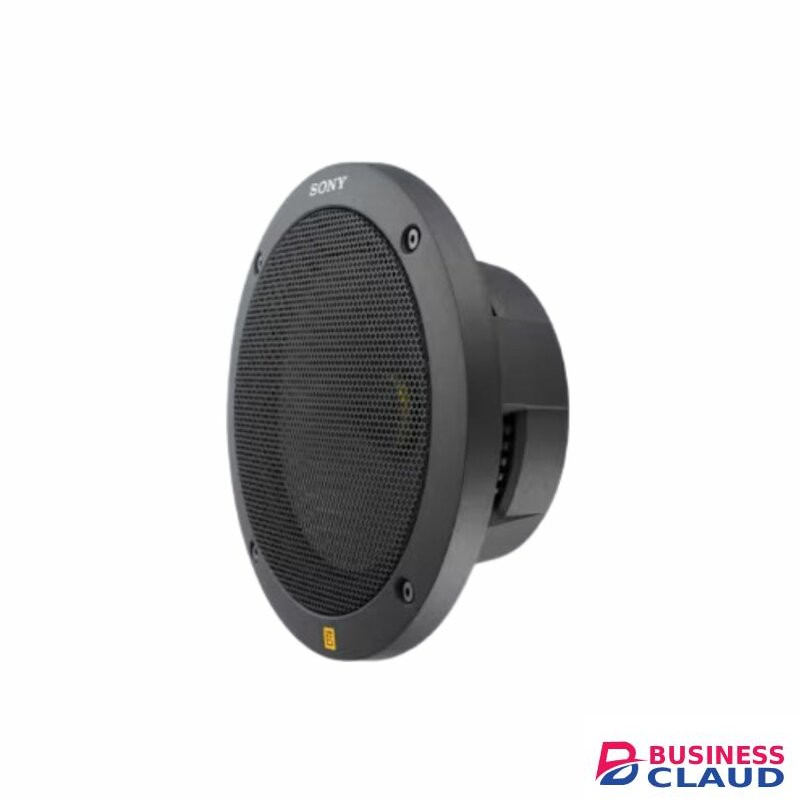

2 Woofer grilles
2 Crossovers
2 Tweeters

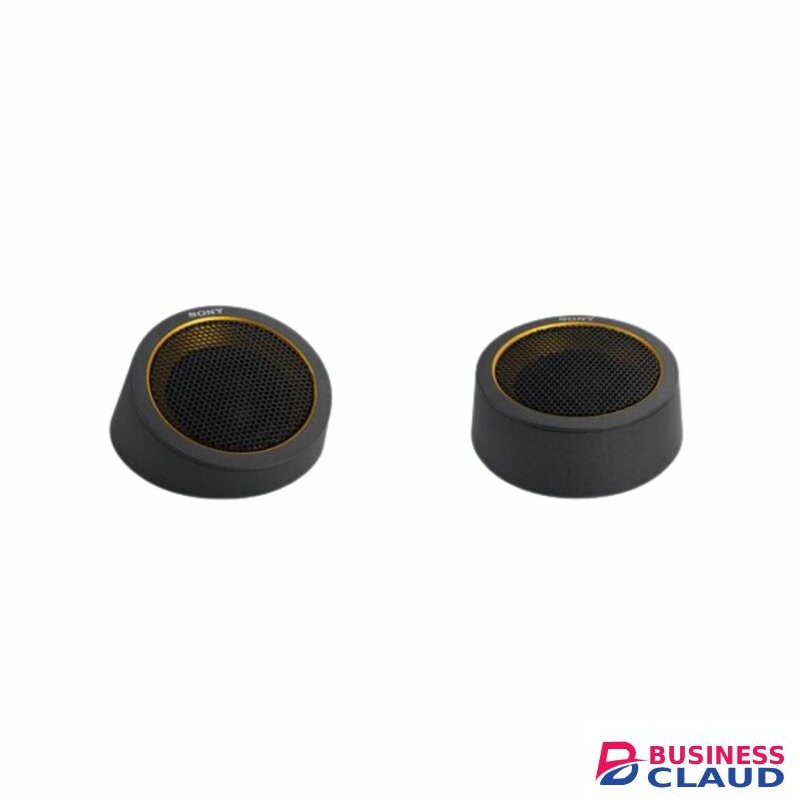

2 Surface mount tweeter housings
2 Angled surface mount tweeter housings
2 Adhesive backed surface mount pads
Ten 1-1/8" Screws
Two M4x5mm Flat head machine screws
2 Crossover input jumpers
Installation instructions (English/ French/ Spanish/ German/ Italian/ 20 other languages)
Warranty information
Woofer template on the box
