Sony XS-W104ES Mobile ES™ Series 10" 4

Specs_on_manufacturer_website

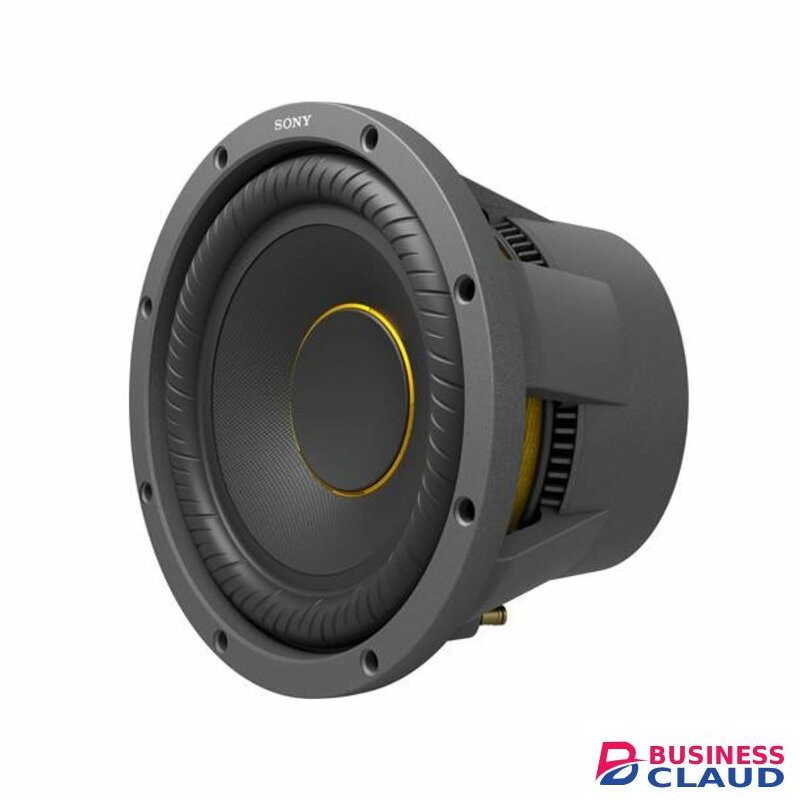

Sony XS-W104ES Mobile ES™ Series 10" 4-ohm component subwoofer KEY FEATURES:

10" 4-ohm component subwoofer

mica flake/aramid fiber/pulp cone with honeycomb core

separated-notch rubber surround

gold-plated spring terminals allow up to 10-gauge wiring

power handling: 450 watts RMS (1800 watts peak)

frequency range: 28-500 Hz

sensitivity: 86 dB

mounting depth: 5.382"

mounting height: 0.5"

sealed box volume: 1.01 cubic feet

ported box volume: 1.44 cubic feet

Sony XS-W104ES Mobile ES™ Series 10" 4-ohm component subwoofer Description

Elevate your sound

Beyond just bass, the XS-W104ES subwoofer completes your music. Whether you're just looking for power you can feel, or to be truly transported by sound, this Mobile ES subwoofer upgrades any in-car listening experience.

Lightweight Rigid Cellular Honeycomb Subwoofer Diaphragm

Lightweight Rigid Cellular(formerly known as MRC) diaphragm material is further enhanced via a honeycomb fibre structure, for unmatched rigidity and responsiveness. Enhancements over the years of diaphragm material development produced a driver 10x more rigid than conventional PP Matrix cones, for natural low-distortion sound and a wide frequency response.

Separated Notch Edge Surround

The woofer surround features another proprietary Sony technology, with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.

Five-beam Frame Structure & Dynamic Air Diffuser

The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.

Progressive Height Rate Spider

The acoustically-optimised spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone. To increase signal integrity and prevent sound interference the lead wire from the voice coil is also sewn to the spider, reducing wire movement.

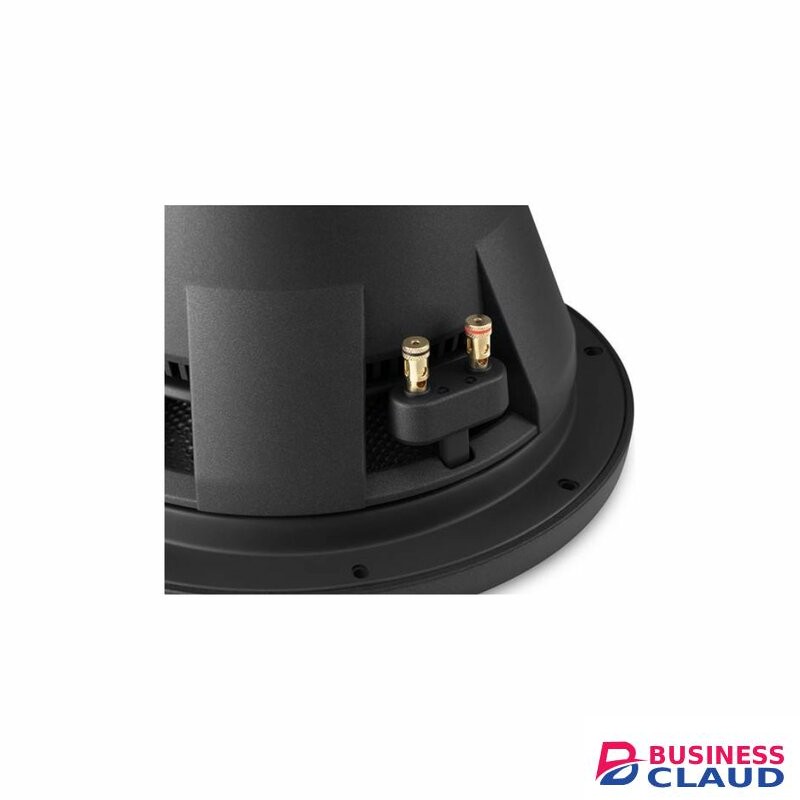

Gold-plated Input Terminals

Gold-plated spring terminals allow up to AWG#10 speaker cables.

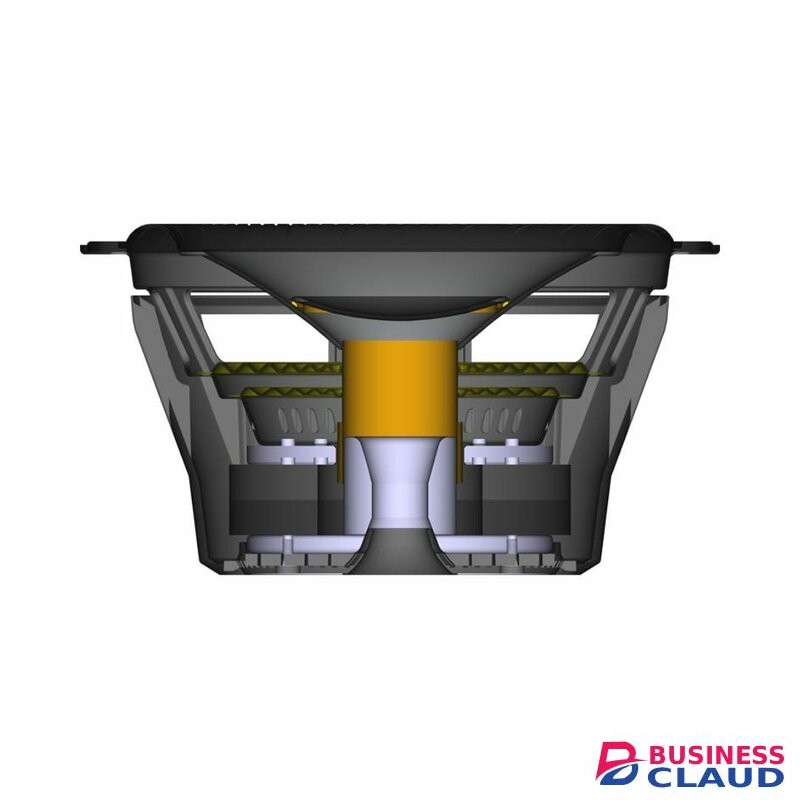

Structure cutaway

Discover structures of the Mobile ES speaker, including newly applied mechanical approaches such as Separated Notch Edge Surround, Five-beam Frame design, and Dynamic Air Diffuser.

Mobile ES Series

Immerse yourself in excellent in-car entertainment

Engineered for ultimate listening pleasure on the road, the Mobile ES Series products bring the very best of your music and connectivity together, for a driving experience like never before.

Sony XS-W104ES Mobile ES™ Series 10" 4-ohm component subwoofer Specs

Size & Weight

WEIGHT

4,860 g

Speaker System

CONFIGURATION

Single Voice Coil

SIZE

10" (25 cm)

General Features

PEAK POWER

1800 W

RMS POWER

450 W

RATED POWER

350 W

EFFECTIVE FREQUENCY RANGE

28-500 Hz

OUTPUT SOUND PRESSURE

86 dB ±2dB SPL (1W,1m)

IMPEDANCE (OHMS)

4

DIAPHRAGM MATERIAL

Lightweight Rigid Cellular Honeycomb

MAGNET MATERIAL

Ferrite

SURROUND MATERIAL

Rubber (Separated Notch)

What's In The Box

Detachable Gasket

Sony XS-W104ES owner's manual

One 10" Single voice coil woofer

Plastic trim ring

Adhesive backed foam gasket

Eight 1-3/8" Screws

Installation instructions (English/ French/ Spanish/ German/ Italian/ 20 other languages)

Warranty information
