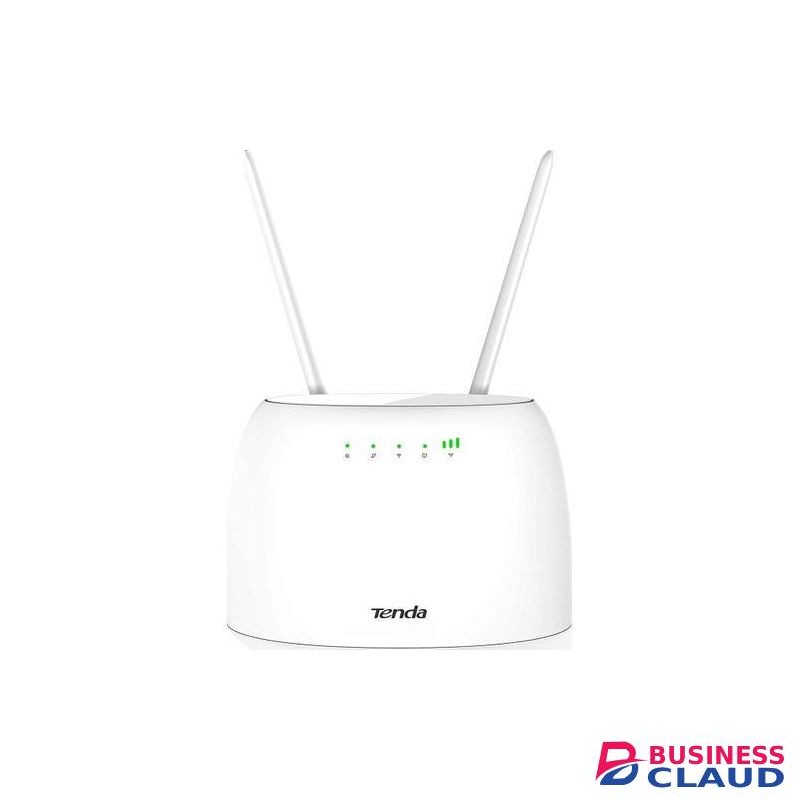

Tenda 4G06 N300 Wi-Fi 4G VoLTE Router
-Fast and Stable Connection empowered by 4G / LTE Cat 4 network
-You can share 4G LTE network with 32 devices at most (12 devices for normal use) and enjoy download speed up to 150 Mbps & upload speed up to 50 Mbps.
-Power on the device, and insert the sim card then you'll get access to the 4G connection
-Smart management can be achieved through Web and Tenda Wifi App
-Wire-free access to internet anywhere and anytime
-No engineer visit and installation required. Easy accessibility; Buy a sim card (mini size) with valid data plan and you’ll be ready to enjoy 3G/4G connection anywhere and anytime (in more than 100 countries)
-Equipped with Qualcomm chipset, 4G06 has two detachable 5dBi 4G Antennas that provide a smooth and strong Wi-Fi coverage.
-Data consumption limiter
-High-quality Voice Service
Empowered by VoLTE (Voice over LTE) function, Tenda 4G06 brings less delay (shorter connection waiting time), and higher quality voice Businessclaud.com can surf the Internet and make calls at the same time by simply connecting an external landline phone
-Dimension: 185*126*60mm（L*W*H）
-Net Weight: About 350 Grams; Color: White
-Wireless Type: 802.11n, 802.11b, 802.11g
-4G Mobile Bands: 4G FDD LTE:B1/B2/B3/B4/B7/B8/B20/B28AB ; 4G TDD-LTE:Band38/Band40
3G WCDMA:B1/B2/B5/B8; 2G GSM:B3/B8

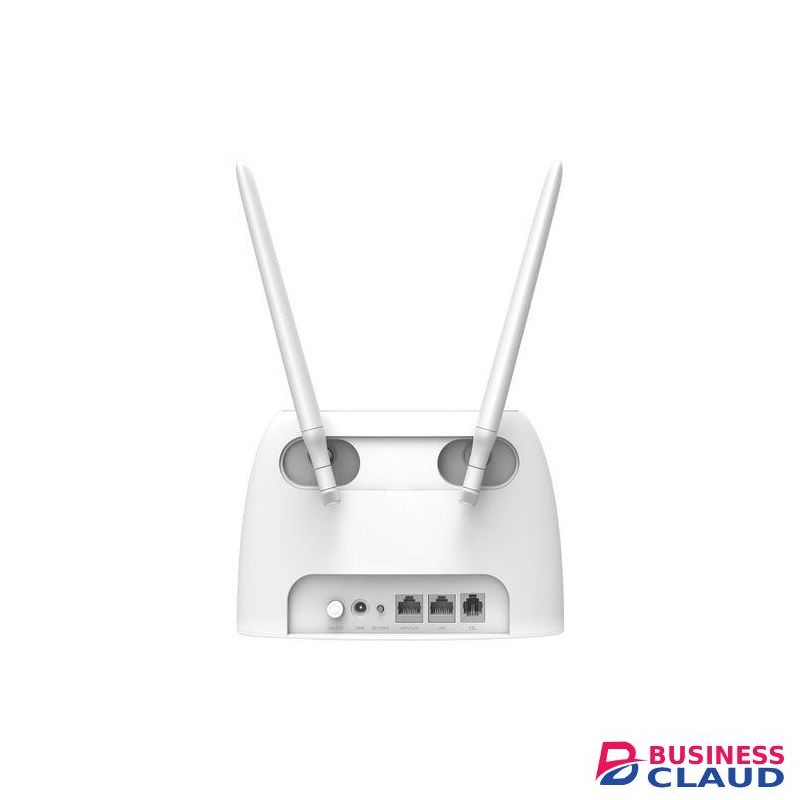

-Ports: 1 *10/100 Mbps LAN/WAN Port; 1 * 10/100Mbps LAN Port; 1*Tel Port; 1* 2FF SIM Card Slot;
-Power Supply: Power adapter:Input power AC 100V-240V 50/60Hz; Output power:DC 12V==1A;
4G/3G Features: Auto-APN; Auto dial-up; Roaming
SMS(Send/Receive/Delete); VoLTE/CSFB; USSD; Data limted; PIN Management;
-Software features: APP/Local/remote management; Parental control
DHCP(DHCP Server and Client); Virtual Server(UPnP/DMZ/Port Forwarding)
DDNS(DynDns, 88ip); VPN(PPTP Client/L2TP Client/PPTP Server)
Firewall; QOS; Upgrade firmware from local or OTA

Specifications

4G CartgoryLTE CAT44G/3G standardsFDD LTE,TDD-LTE,WCDMA4G Mobile Bands4G FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28AB
4G TDD-LTE:Band38/Band40
3G WCDMA:B1/B2/B5/B8
2G GSM:B3/B8Max 4G speedDL:150Mbps
UL:50MbpsWi-Fi standards802.11b/g/nWi-Fi frequency2.4GHzWi-Fi speed2.4GHz:300MbpsWi-Fi transmit Power2.4GHz:up to 20dBmInterface1 × 10/100 Mbps LAN/WAN Port
1 × 10/100Mbps LAN Port
1*Tel Port
1 × 2FF SIM Card SlotButtonPower on/off
WPS/ResetAntenna2 detachable 4G/3G/2G Antennas
2 Internal Wi-Fi AntennasLED indicatorPower
Wi-Fi
LAN
Internet
4G/3G/2G Signal strength(3 Bars)Dimension185*126*60mm（L*W*H）Power SupplyPower adapter:Input power AC 100V-240V 50/60Hz
Output power:DC 12V==1AWAN Type4G/3G/2G or Wired4G/3G FeaturesAuto-APN
Auto dial-up
Roaming
SMS(Send/Receive/Delete)
VoLTE/CSFB
USSD
Data limted
PIN ManagementWi-Fi functionsBroadcast and Hide Wi-Fi name
Guest network
Wi-Fi schedule

Wi-Fi security

WEP,WPA-PSK, WPA2-PSK, WPA/WPA2

Software features

APP/Local/remote management
Parental control
DHCP(DHCP Server and Client)
Virtual Server(UPnP/DMZ/Port Forwarding)
DDNS(DynDns, 88ip)
VPN(PPTP Client/L2TP Client/PPTP Server)
Firewall
QOS
Upgrade firmware from local or OTA
IPV4/IPV6
TR069CertificationFCC Granted
CE Granted
ROHS GrantedTemperatureOperating Temperature: 0℃~40℃
Storage Temperature: -30ºC~70ºCHumidityOperating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 90% RH Non-condensingPackage Content1 * 4G LTE Router
2 * Detachable antennas
1 * Ethernet cable
1* RJ11 Tel cable
1 * Power adapter
1 * Quick Installation Guide

White
